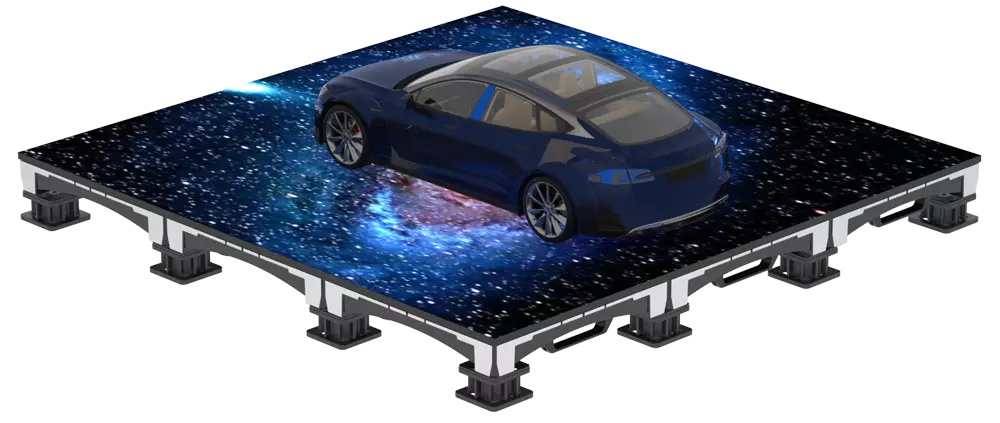

Front Service LED Displays

Front Service LED Displays

Front Service LED Displays for indoor LED video floor, available for full front maintenance, including module, power supply, and receiving card. Available for both DOB and MASK solutions.More functions, be led floor, led wall, and rental applications. available for indoor XR solutions.

Die-casting Aluminum
Cabinet

Higher accuracy and flatness

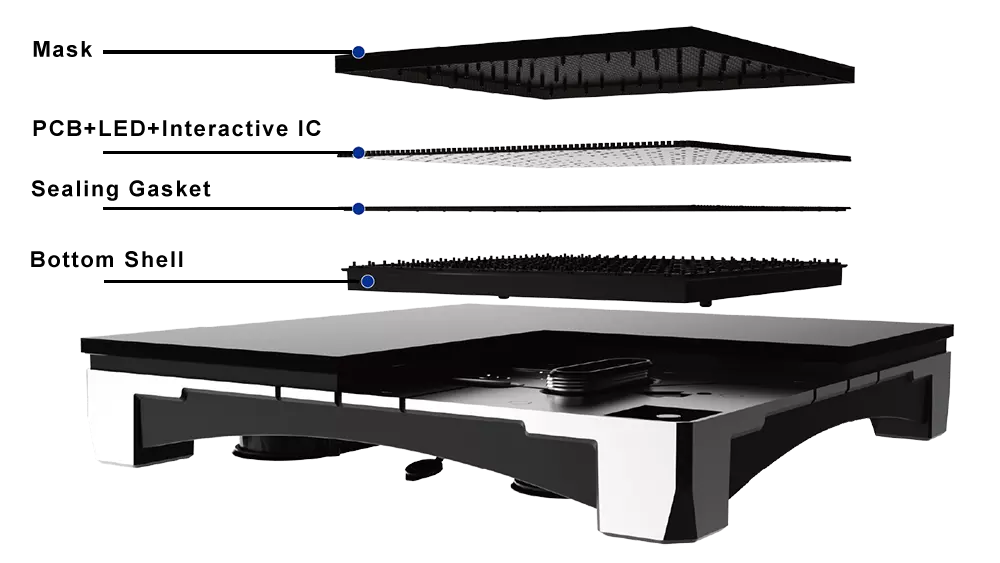

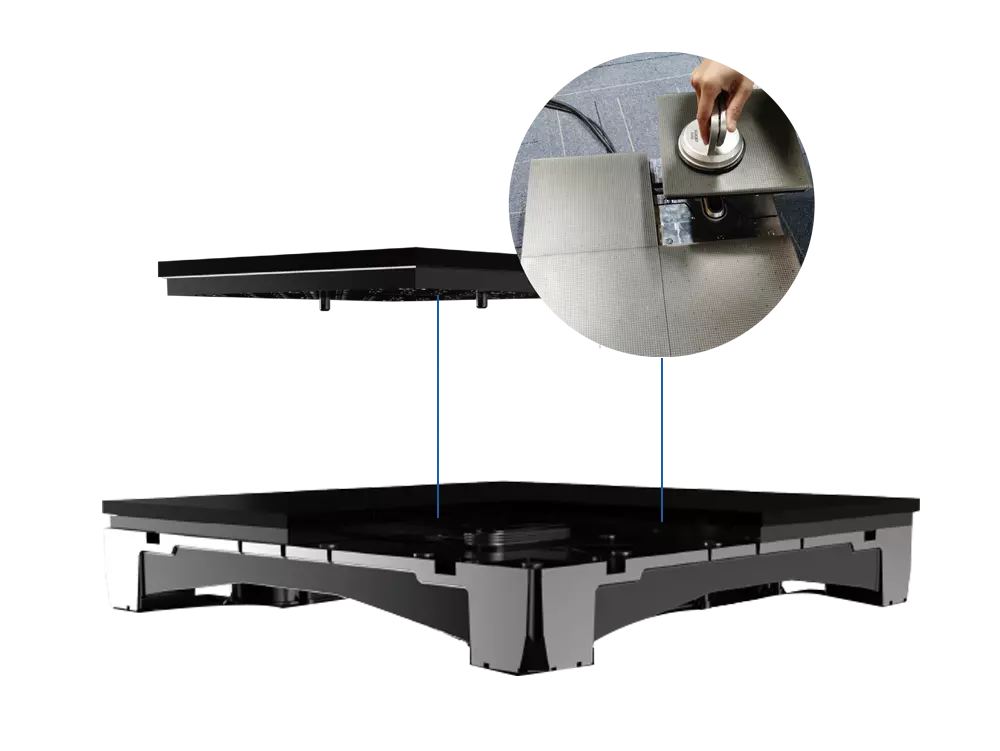

Module Front maintenance

Magnetic designed module

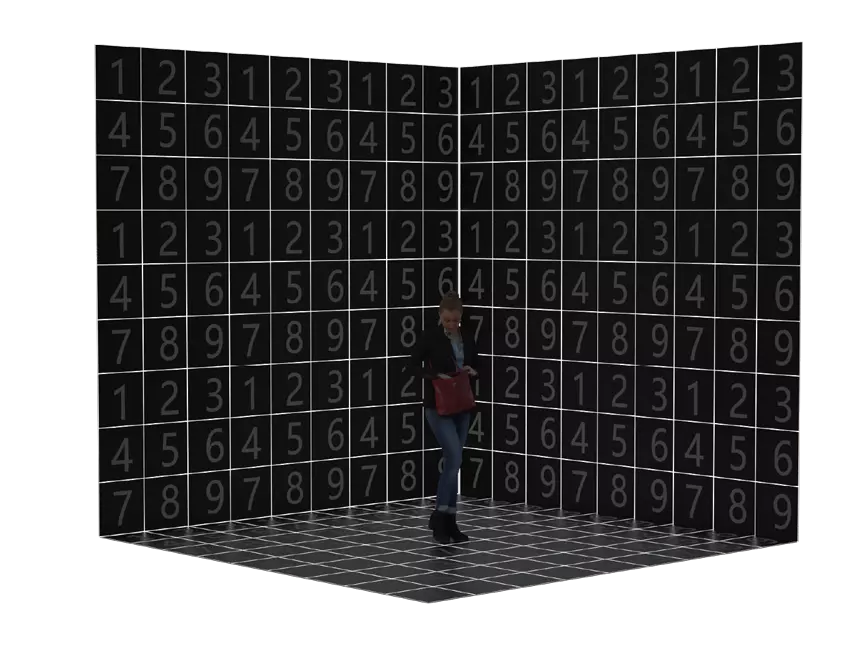

XR solution
available

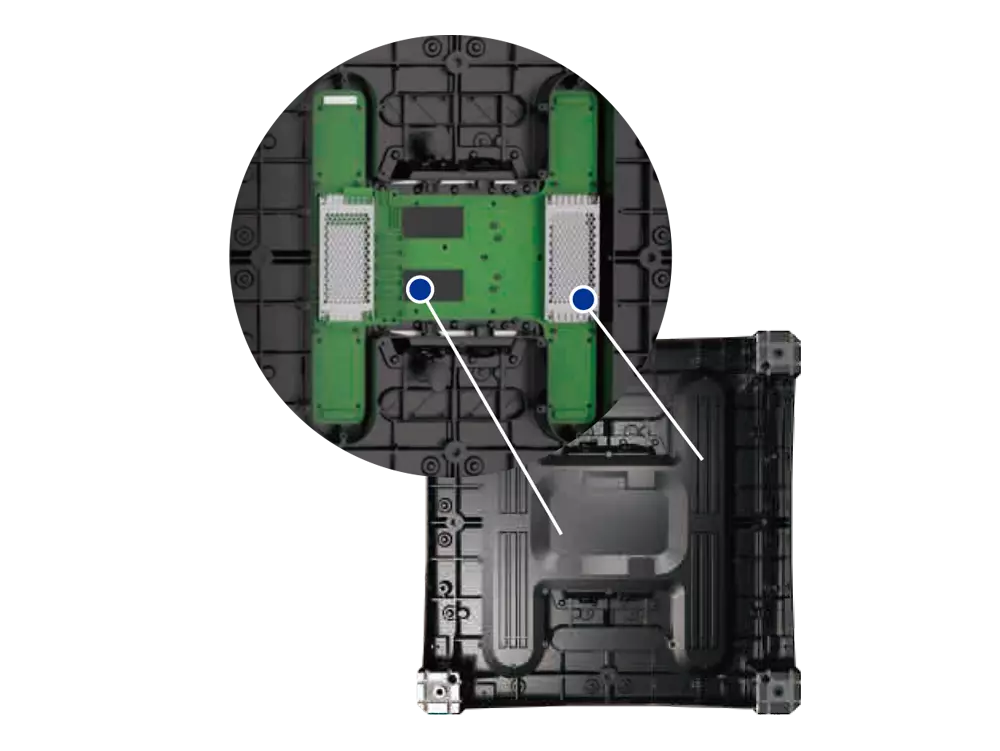

Power Supply and Card Support Dual
Backup Design(optional)

More stable and safety for your projects

Cabinet Size

Specifications

Specifications
  Model No. GFL 1.8 GFL 2.6 GFL 2.9 GFL 3.9
  Pixel Pitch 1.83 mm 2.604 mm 2.976mm 3.91 mm
  Pixel Configuration SMD1415-DOB SMD1415 SMD1415 SMD1921
  LED Module Dimensions (mm) 250×250×24 250×250×24 250×250×24 250×250×24
  Panel Dimensions (W × H × D) (mm) 500 ×500x92 500×500 ×92 500×500×92 500×500 ×92
  Weight Per Panel 11.5kg/panel 11.5 kg/panel 11.5 kg/panel 11.5 kg/panel
  Colours 281 trillion 281 trillion 281 trillion 281 trillion
  Contrast Ratio >3,000 : 1 >3,000 : 1 >3,000 : 1 >3,000 : 1
  Brightness(cd/m²) 600 - 1000 900 - 1800 900 - 1800 900 - 1800
  Max./Avg. Power(W/Panel) 200/100 200/100 200/100 200/100
  Refresh Rate
3,840 Hz
  Viewing Angle
160°/160°
 Operating Voltage
100-240V AC 50-60Hz
  Expected LED Lifetime (Max)
100,000 Hrs
  Servicing
Front
  IP Rating(Front/Rear)
IP54/IP45
Max Load-Bearing
1000Kg
2200kg

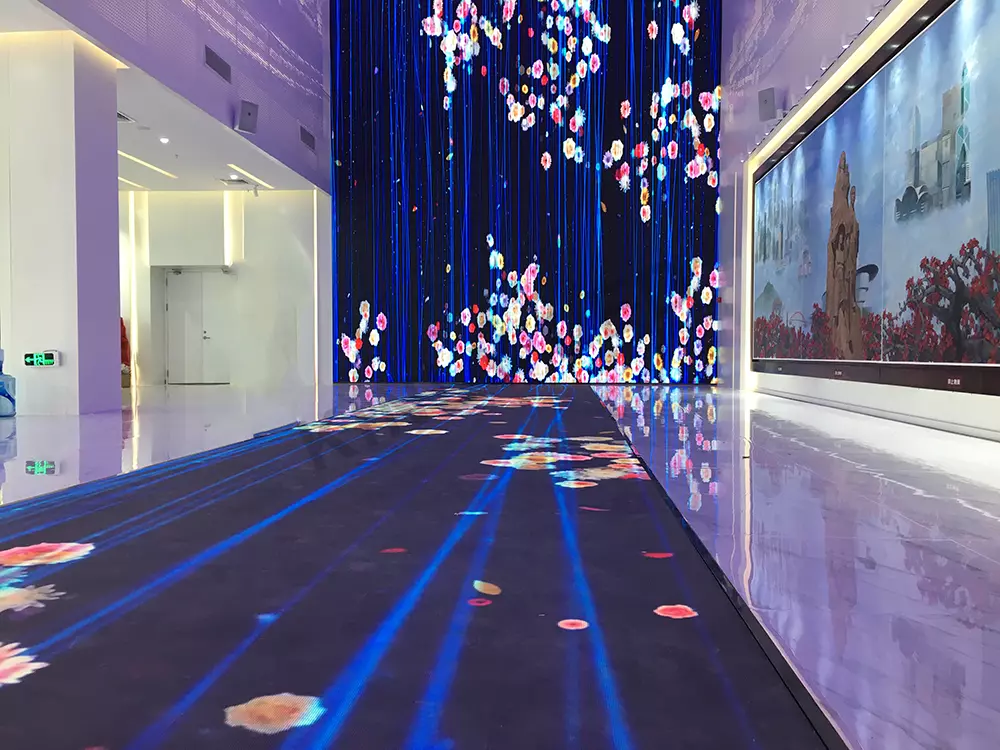

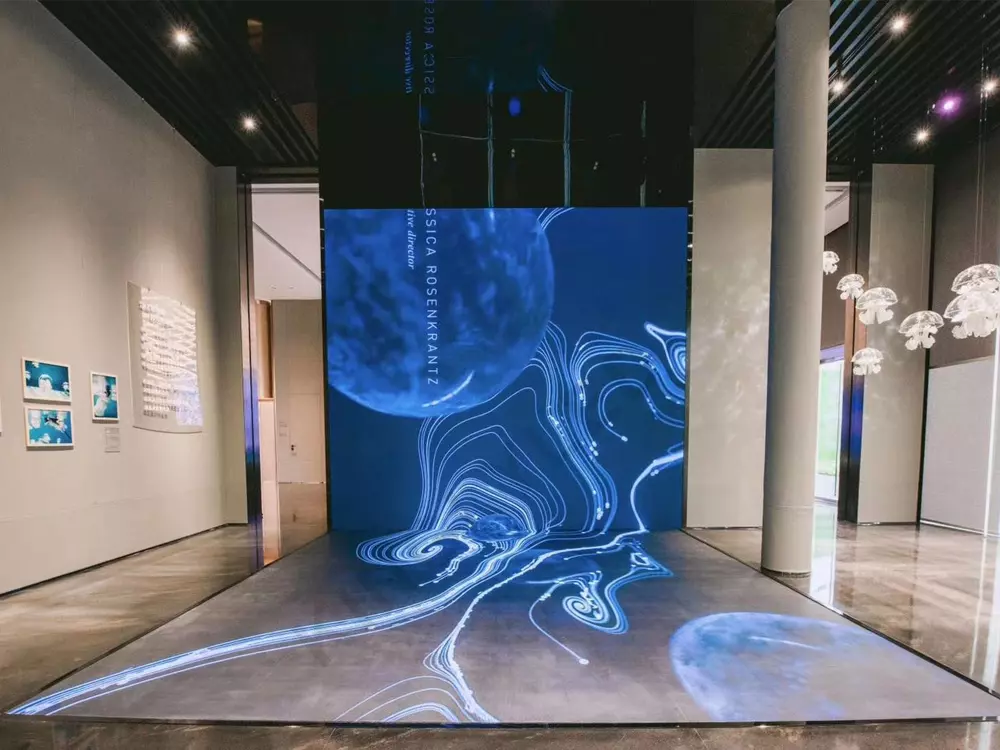

Application Cases
