Rear Service LED Video Wall

Rear Service LED Video Wall

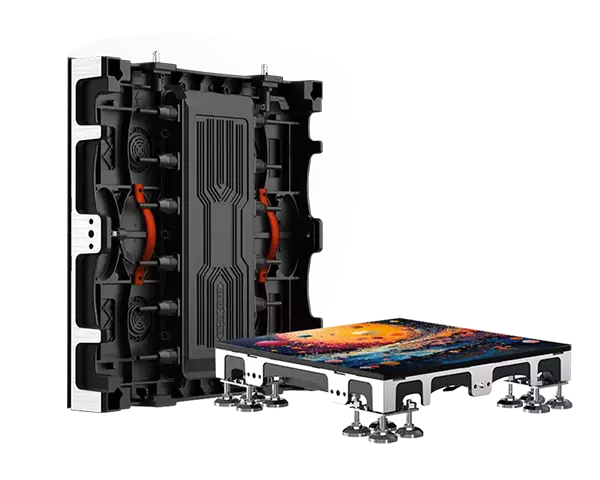

Rear Service LED Video Wall for indoor LED video floor, available for full front maintenance, including module, power supply, and receiving card. Available for both DOB and MASK solutions.More functions, be led floor, led wall, and rental applications. available for indoor XR solutions.

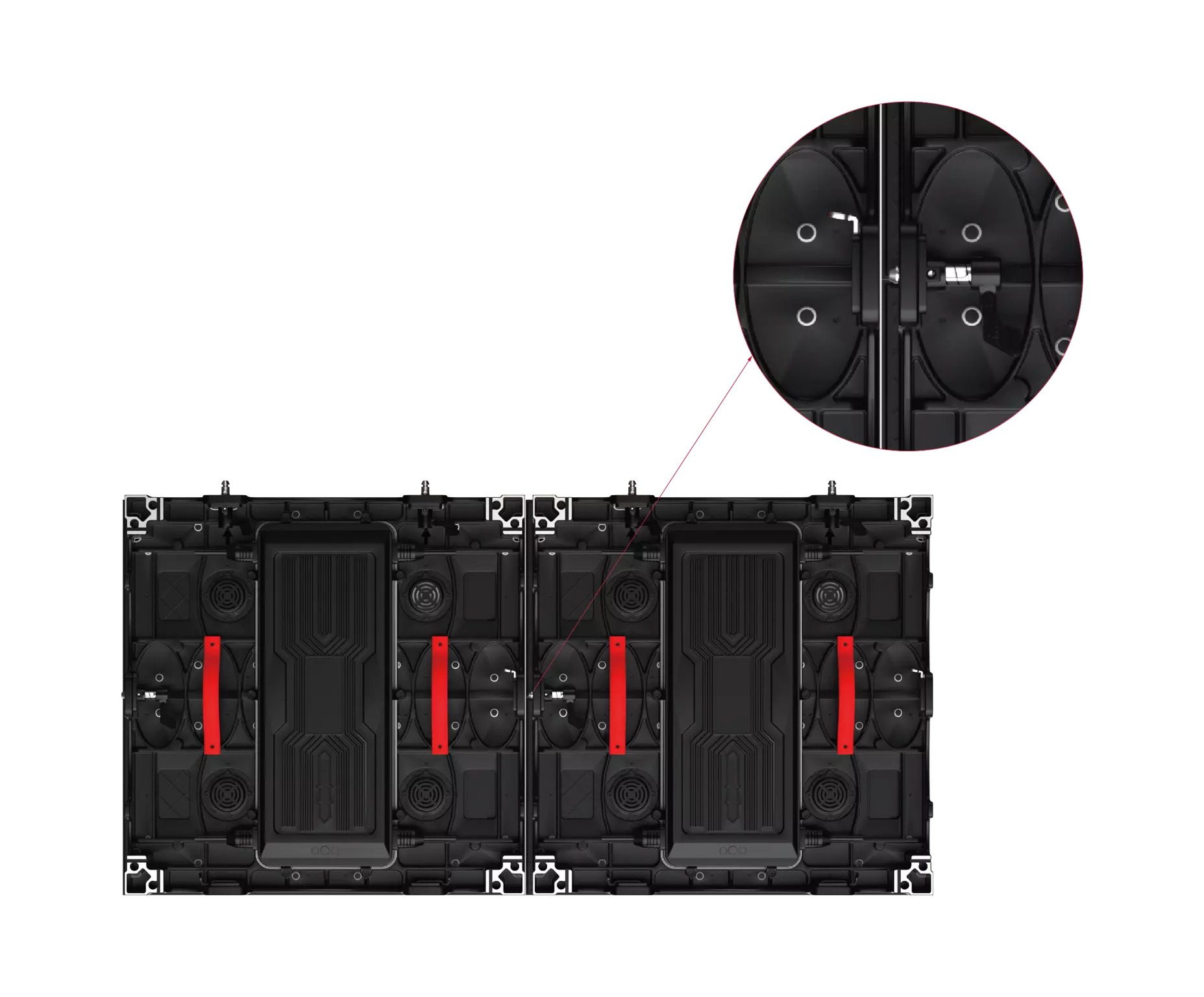

Die-casting Aluminum
Cabinet

Higher accuracy and flatness

3 Types of installation

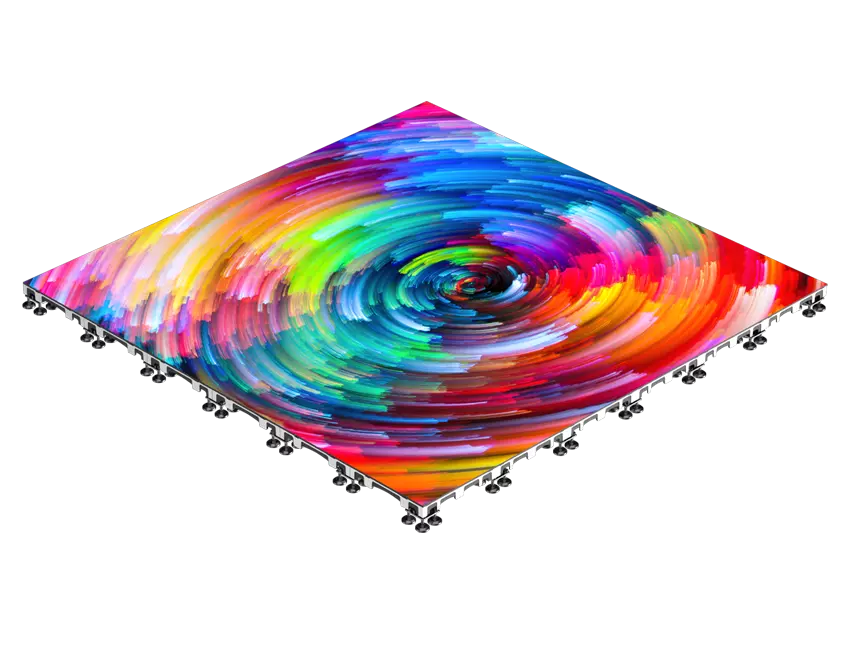

Rear Series LED Wall available for XR solutions,LED dance floor, LED Wall and stage rental

XR solution
available

Soft or hard connection

Soft or hard connection for modules, back-up power supply and receiving card available(optional)

Easy to install and Maintenance

Easy for seamless installation, fast locks available

Specifications

Specifications
  Model No. GFL-Plus 1.8 GFL-Plus 2.6 GFL-Plus 2.9 GFL-Plus 3.9
  Pixel Pitch 1.83 mm 2.604 mm 2.976mm 3.91 mm
  Pixel Configuration SMD1415-DOB SMD1415 SMD1415 SMD1921
  LED Module Dimensions (mm) 250×250×24 250×250×24 250×250×24 250×250×24
  Panel Dimensions (W × H × D) (mm) 500 ×500x92 500×500 ×92 500×500×92 500×500 ×92
  Weight Per Panel 11.5kg/panel 11.5 kg/panel 11.5 kg/panel 11.5 kg/panel
  Colours 281 trillion 281 trillion 281 trillion 281 trillion
  Contrast Ratio >3,000 : 1 >3,000 : 1 >3,000 : 1 >3,000 : 1
  Brightness(cd/m²) 600 - 1000 900 - 1800 900 - 1800 900 - 1800
  Max./Avg. Power(W/Panel) 200/100 200/100 200/100 200/100
  Refresh Rate
3,840 Hz
  Viewing Angle
160°/160°
 Operating Voltage
100-240V AC 50-60Hz
  Expected LED Lifetime (Max)
100,000 Hrs
  Servicing
Front
  IP Rating(Front/Rear)
IP54/IP45
Max Load-Bearing
1000Kg
2200kg

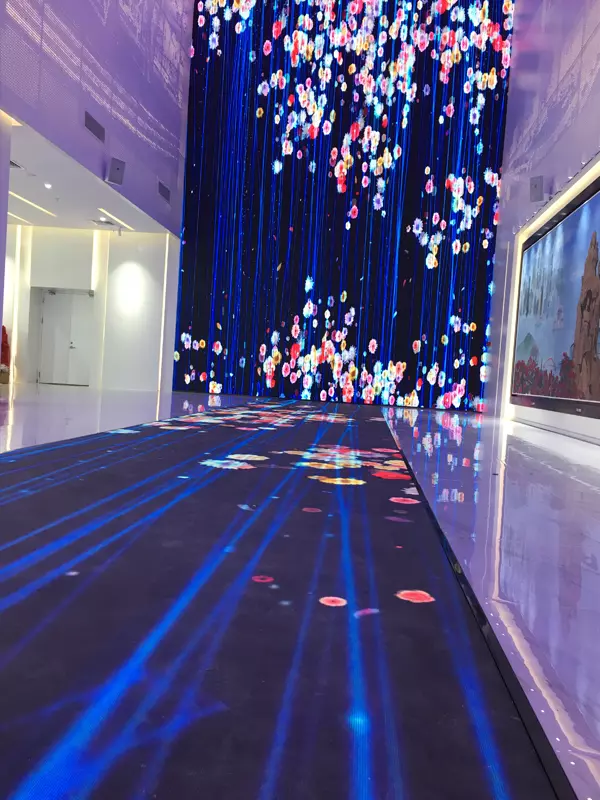

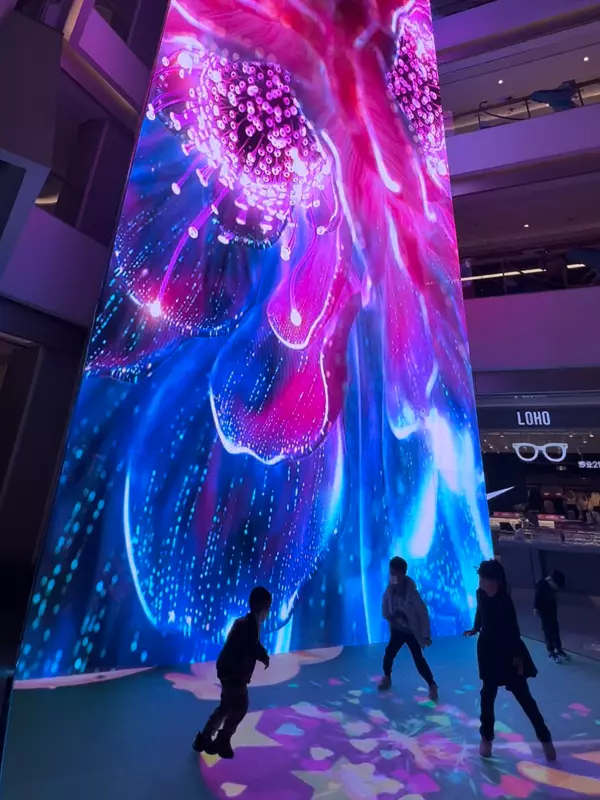

Application Cases
