LED Display For DOOH

What is Outdoor LED Display?

An outdoor LED display is a large‑format digital screen made of light‑emitting diodes (LEDs), specially designed to work in open‑air, harsh outdoor environments. It displays real‑time text, images, animations and full‑motion videos by controlling the brightness and color of RGB LED pixels.

  • Ultra‑high brightness: 5,000–10,000 nits, clearly visible under direct sunlight; most support automatic brightness adjustment for day‑night switching.
  • Weather resistance: IP65/IP67 dust‑proof and waterproof rating, anti‑UV, anti‑corrosion, and stable operation at -30℃ to +60℃, resisting rain, wind and dust.
  • Modular design: Assembled by standard LED panels, customizable in size and shape for buildings, billboards or event screens.
  • Wide viewing angle: 140°–160° horizontal & vertical viewing range, visible from long distances.
Send Your Inquiry Now

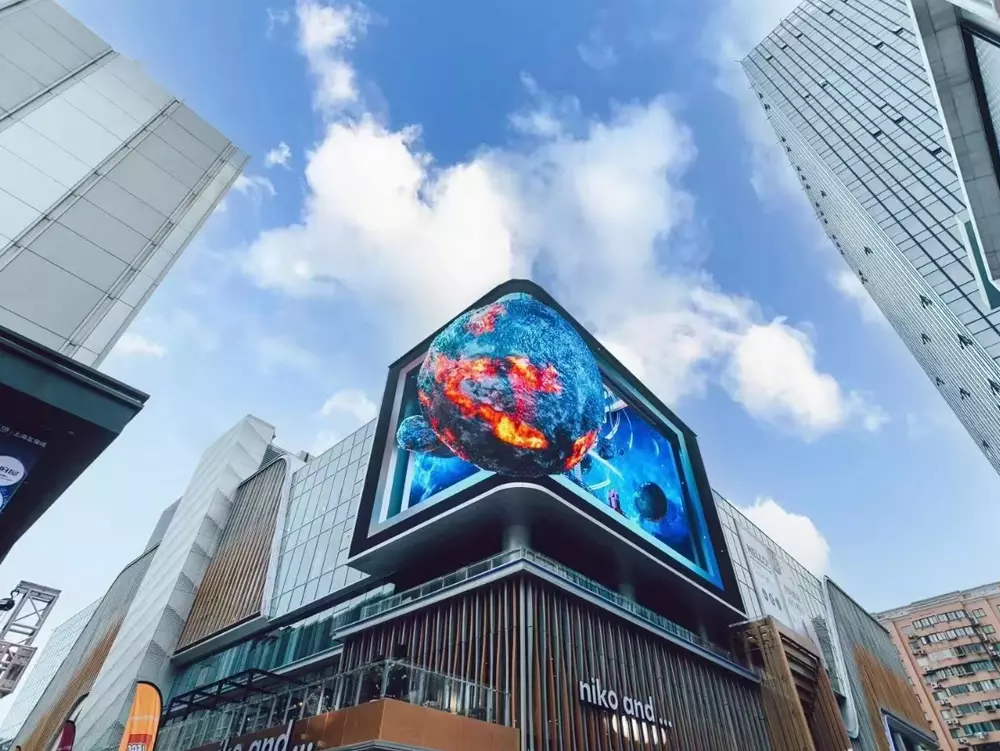

Outdoor LED Displays

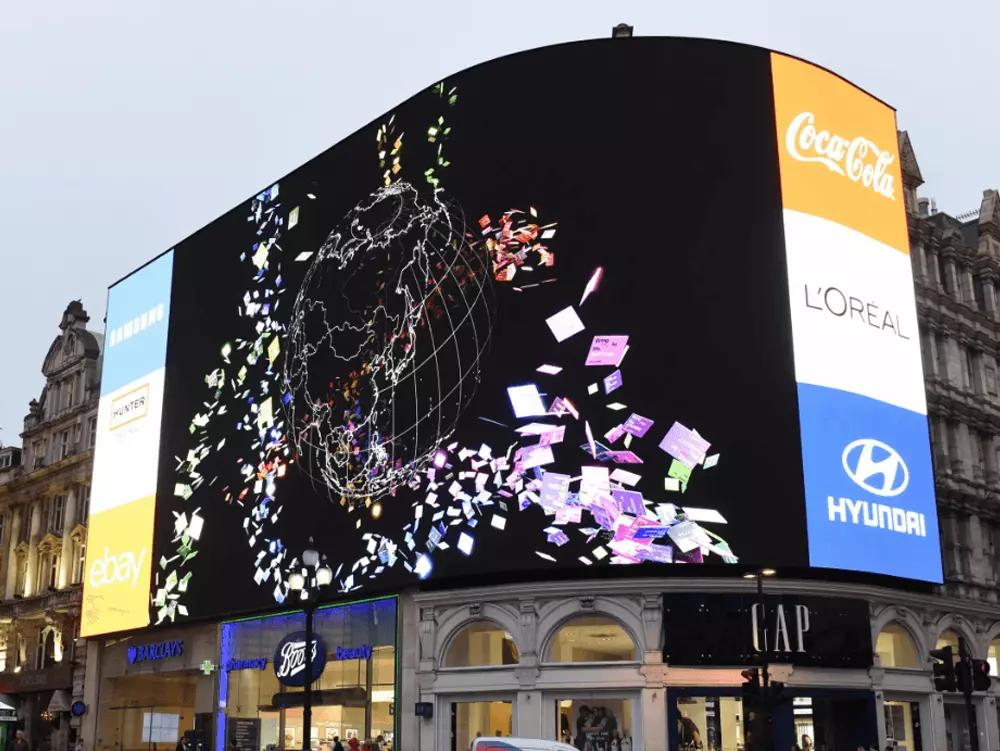

Outdoor Digital Signage

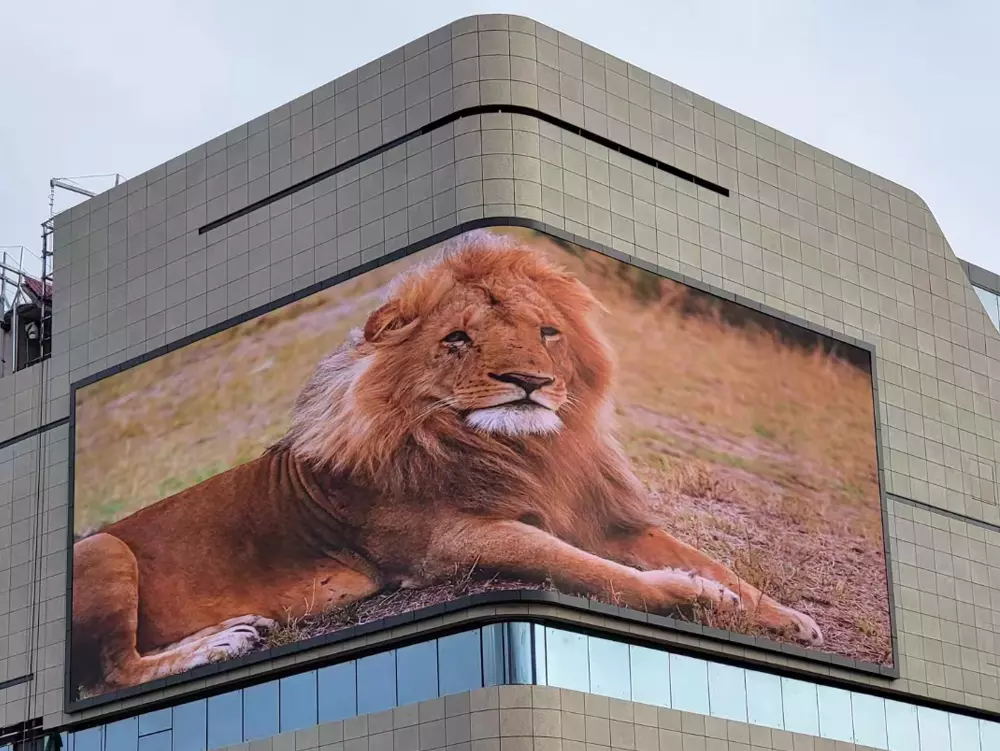

Outdoor LED Billboard

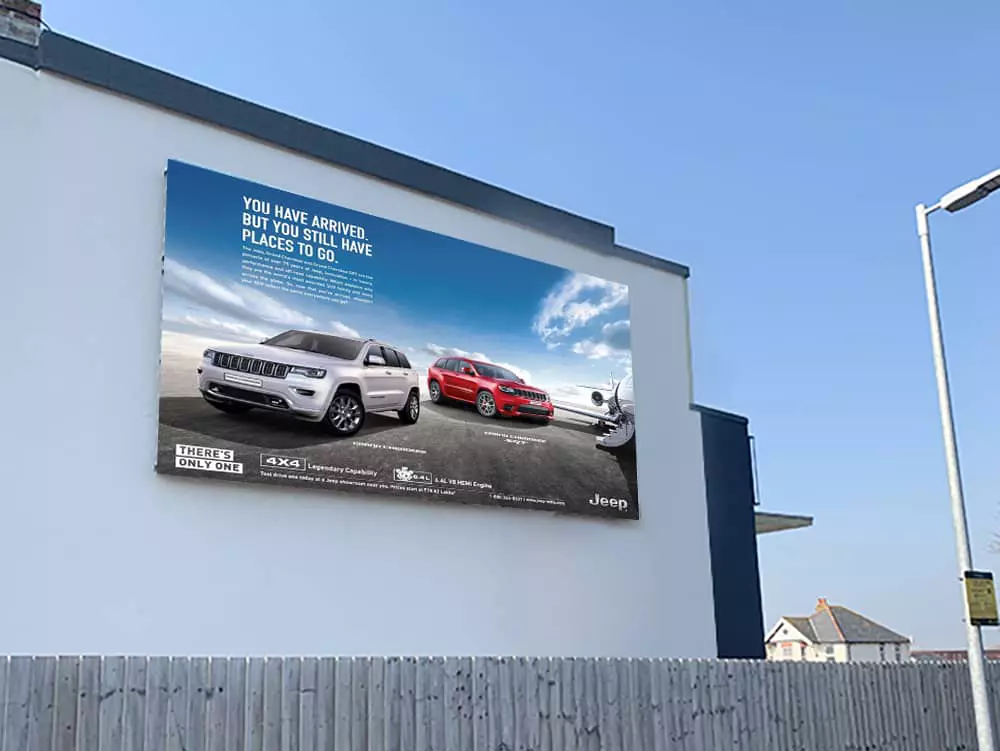

Outdoor LED Sign
3D LED Displays

Featured Outdoor LED Ditigal Signage

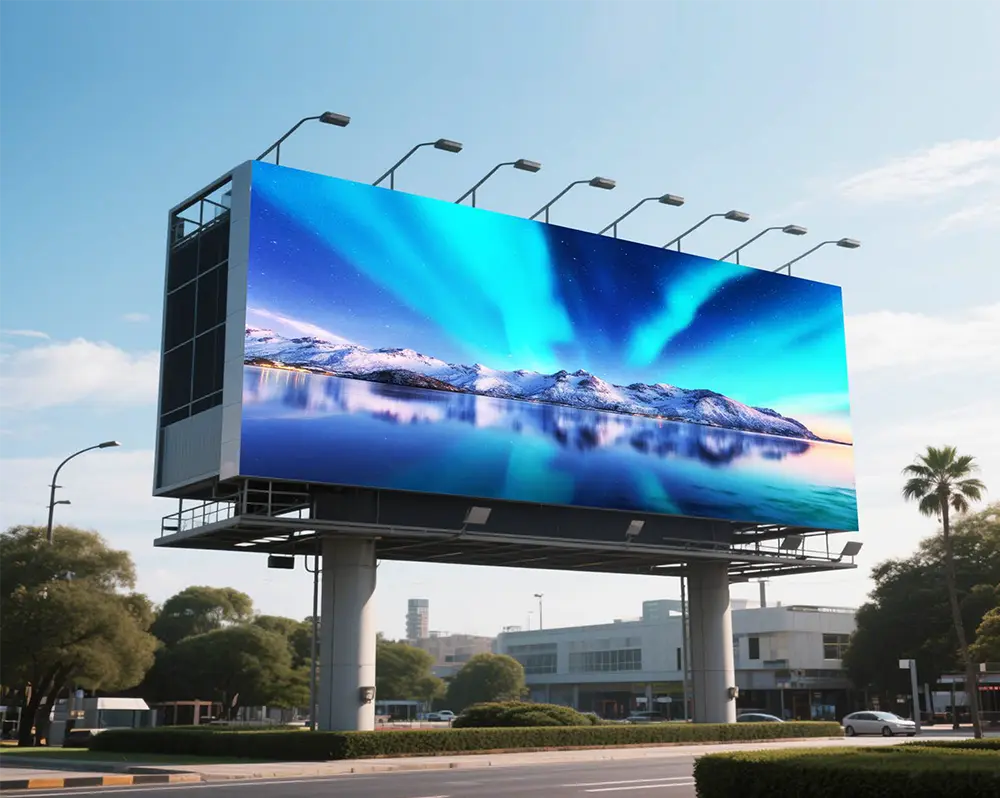

Outdoor advertising billboards, building media facades, stadiums, public squares, transportation hubs, street information signs, outdoor stage screens and roadside digital signage.

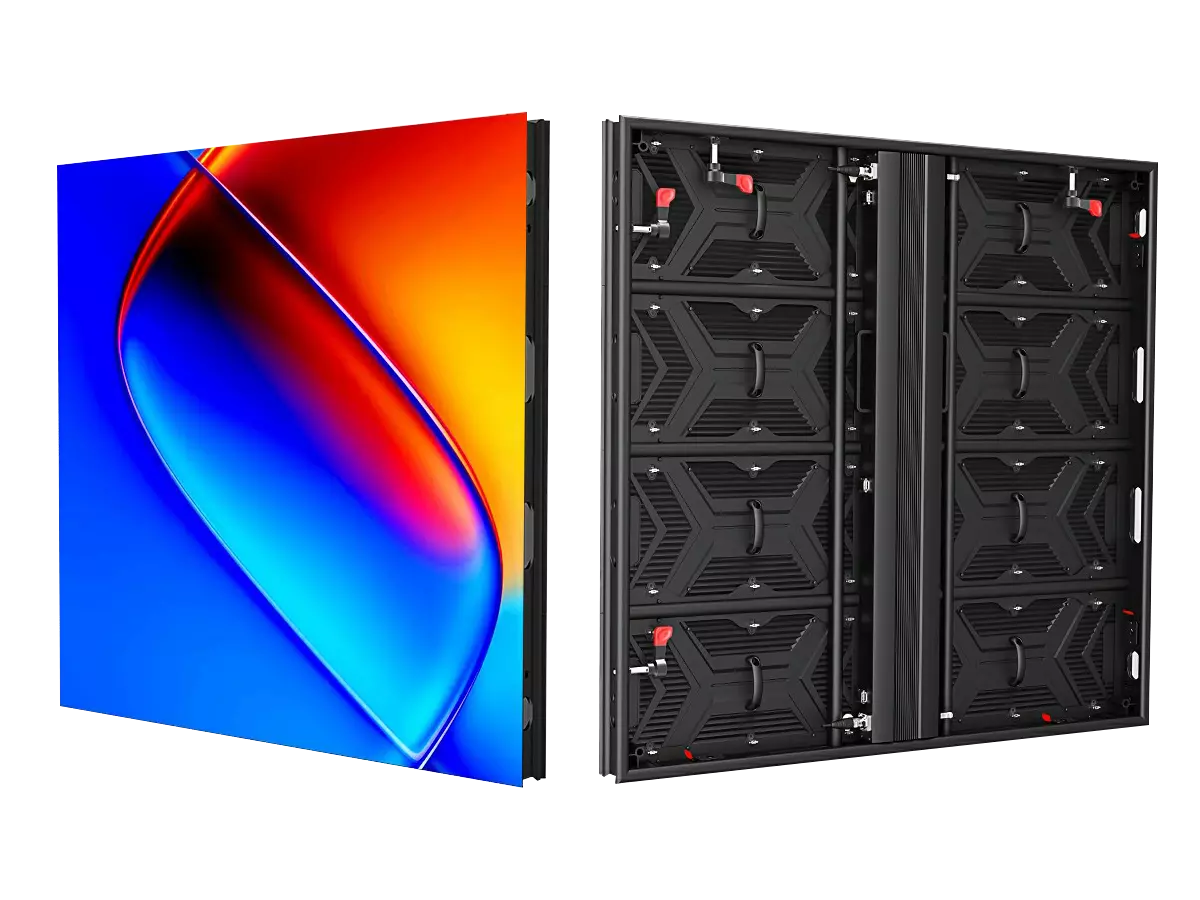

Outdoor LED Signs

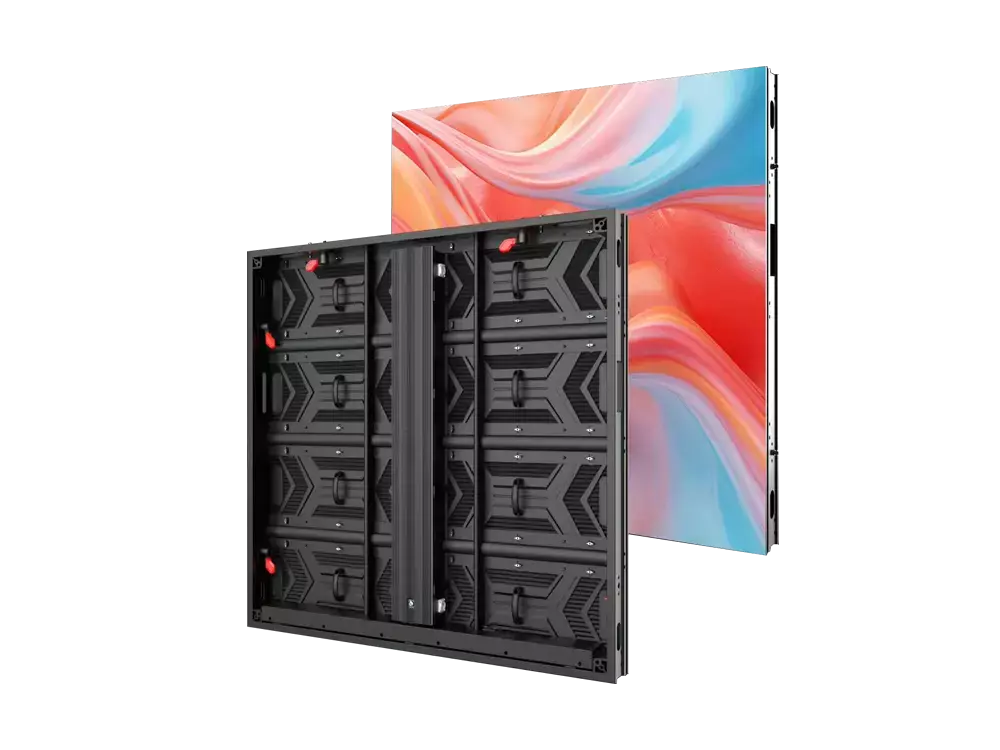

LED Display For DOOH

High‑Impact LED Display for DOOH | Dynamic Digital Out‑of‑Home Advertising Screen

  • Tailored for DOOH scenarios, delivering eye‑catching real‑time video & content to capture pedestrian attention.
  • Ultra‑high brightness & anti‑glare design, visible clearly under sunlight for 24/7 outdoor advertising performance.
  • IP65 weatherproof, anti‑UV and stable operation, perfectly suited for streets, plazas, commercial zones and transit hubs.
  • Wide viewing angle & seamless splicing, ensuring consistent display effect from multiple directions.
  • Flexible content update & modular customization, maximizing brand exposure and advertising conversion for DOOH media.

Why Choose Outdoor LED Screen

Outdoor led display presents the cost-effective long-term investment due to:

Energy Efficiency

Energy‑Saving Outdoor LED Display | High‑Efficiency Low‑Power Digital Billboard ,Advanced energy‑saving chip & drive design, greatly reducing power consumption for long‑term outdoor operation.

Longevity

The Outdoor LED screen maintains its typical brightness levels for 14 years, with the 10-hours-per-day activity. This means that the brightness of the LEDs on the screen will drop to half from the original levels.

Energy Efficiency

Energy‑Saving Outdoor LED Display | High‑Efficiency Low‑Power Digital Billboard ,Advanced energy‑saving chip & drive design, greatly reducing power consumption for long‑term outdoor operation.

Energy Efficiency

Energy‑Saving Outdoor LED Display | High‑Efficiency Low‑Power Digital Billboard ,Advanced energy‑saving chip & drive design, greatly reducing power consumption for long‑term outdoor operation.

Black

Extraordinary deep blacks

Excellence

Capture every brilliance

IP Rating

Protection level IP67

Cool

Stay cool, enjoy more

Fast installation

Easy maintenance

Energy-saving

Energy-saving

Less consumption

EMC Class B Standard

Safe choice

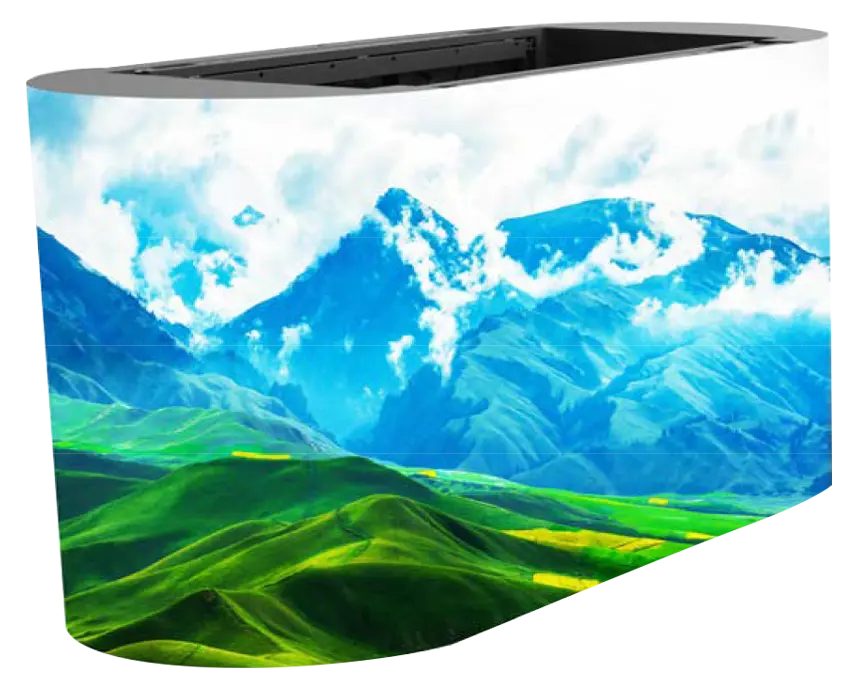

Creative Shapes

Convex and concave curved Splicing

The most important parameter indicators of outdoor LED digital billboards

Below are the core technical parameters that determine the performance, stability and advertising effect of outdoor LED digital billboards, essential for project selection and quotation.

  1. Pixel Pitch (P value): The distance between adjacent LED pixels. Smaller pitch delivers higher resolution and clearer images for close‑viewing; larger pitch suits long‑distance outdoor viewing scenarios. Common types: P3, P4, P5, P6, P8, P10.
  2. Brightness (Nits/cd/㎡):Outdoor screens require ≥5000 nits for sunlight visibility; high‑sunlight areas need 7000–10000 nits. Must support auto‑brightness adjustment to save energy at night.
  3. Protection Grade (IP Rating):IP65/IP67 is standard for outdoor use, ensuring waterproof, dustproof, anti‑corrosion performance against rain, wind and sand.
  4. Viewing Angle:Horizontal ≥140°, Vertical ≥120°. Wider angle guarantees consistent display effect for pedestrians from all directions.

Ultra-high Definition Visual Enjoyment

High resolution, stable image display,every detail can be visible clearly, without trailing or flickering on the screen

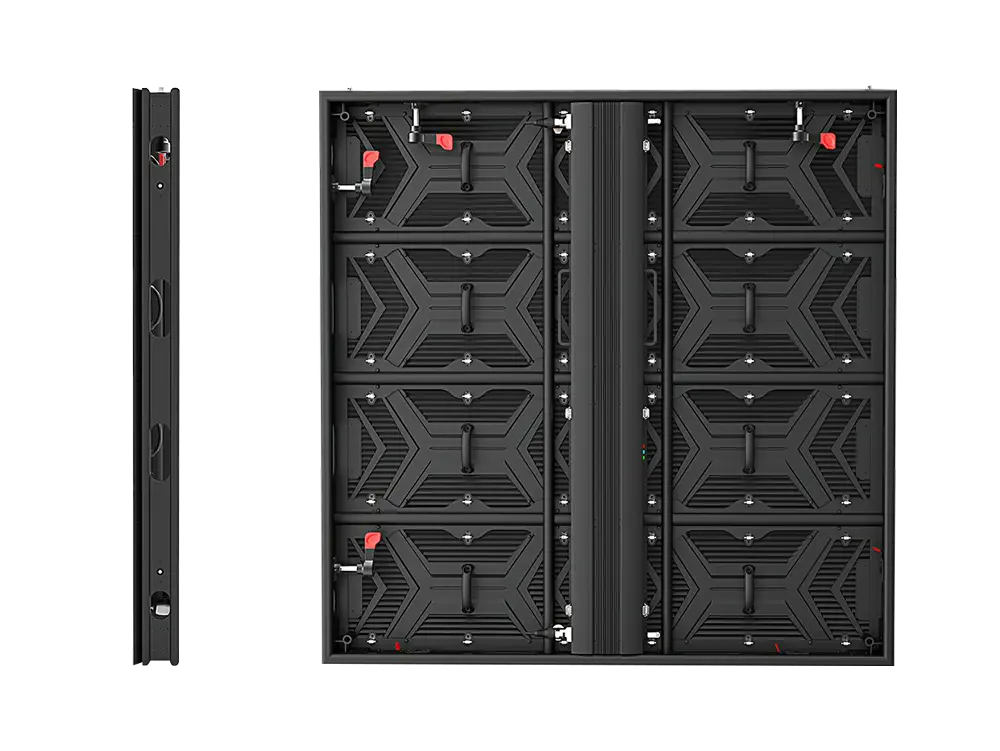

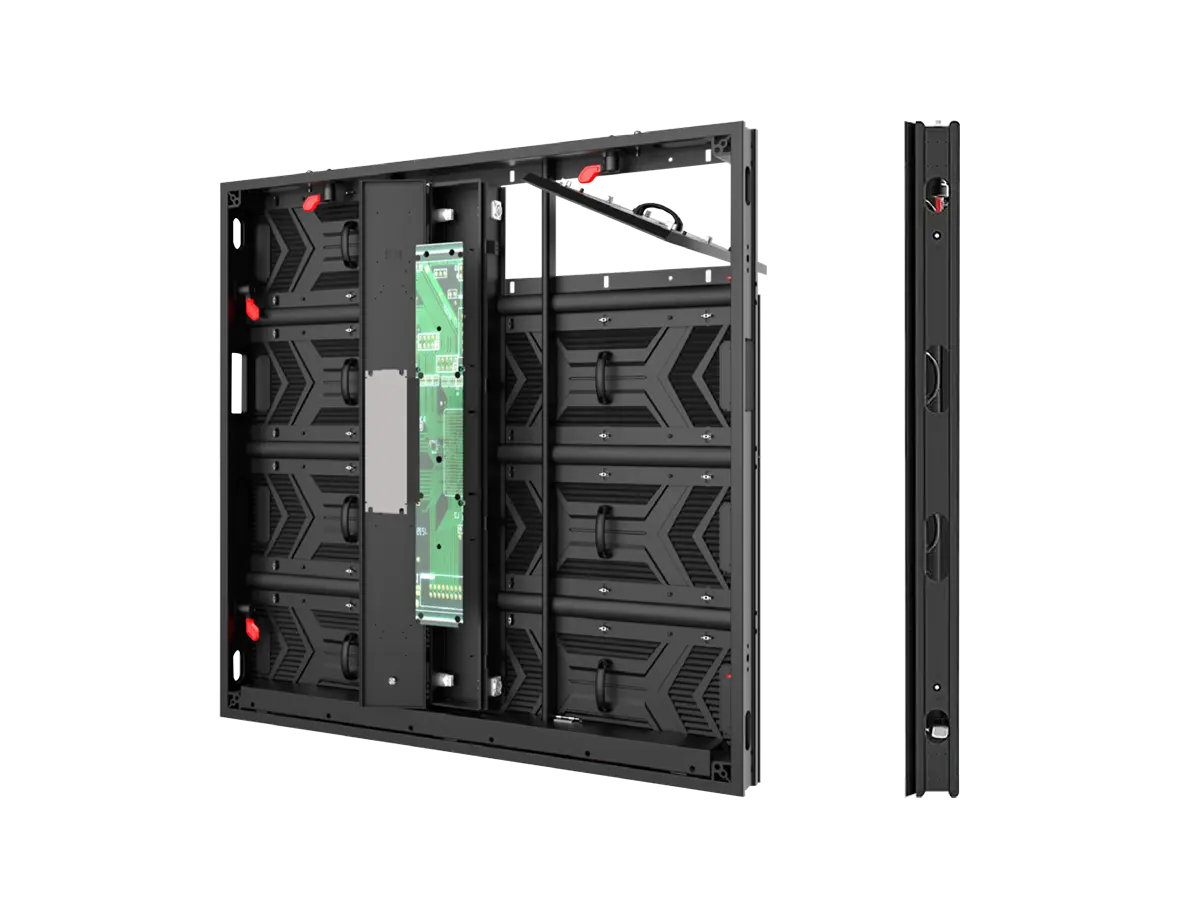

Support Front And Rear Dual Maintenance

High resolution, stable image display,every detail can be visible clearly, without trailing or flickering on the screen

  • Designed with front and rear dual maintenance, supporting both front panel disassembly and back‑side service access.
  • Greatly improves installation flexibility, suitable for wall‑mounted, hanging and built‑in outdoor advertising scenarios.
  • Quick component replacement and routine inspection without removing the whole screen, saving maintenance time and labor costs.
  • Stable outdoor performance with high brightness, waterproof and dustproof features, combining easy serviceability with long‑term reliability.
  • Ideal for DOOH media, commercial facades and urban outdoor advertising projects with limited back‑space conditions.

Support Front And Rear Dual Maintenance

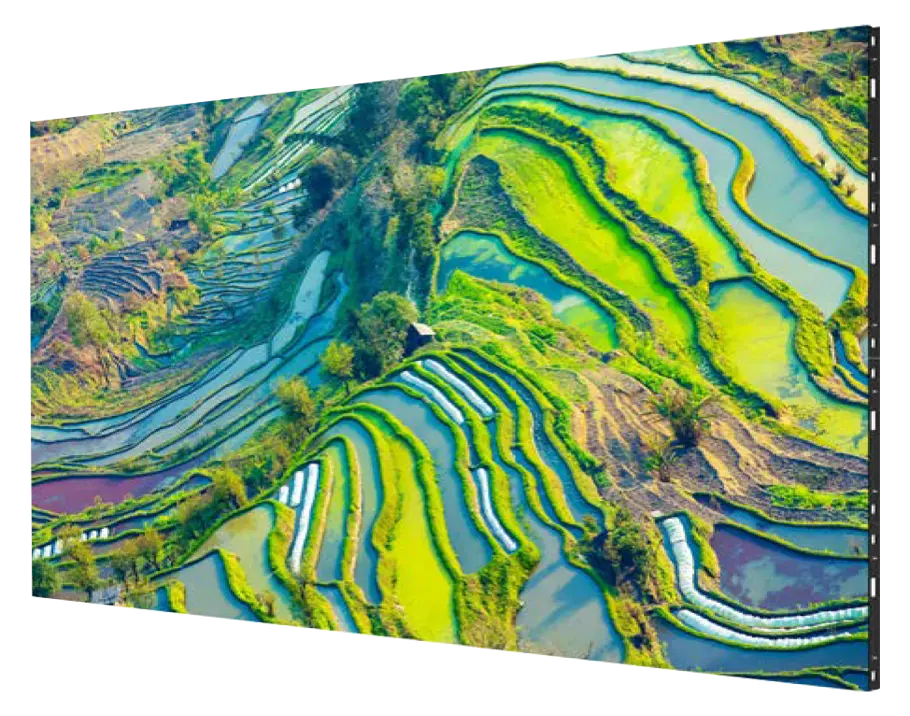

Our LED display supports ultra‑fine seamless splicing, eliminating visible gaps between panels for an integrated, border‑free visual effect.

Combined with true 4K high‑definition resolution, it delivers sharp details, vivid colors and smooth image performance with ultra‑high pixel density.

Whether for large‑scale commercial screens, exhibition halls or high‑end advertising walls, it presents immersive 4K visual experience with zero‑gap seamless integration, bringing stunning display effects to every scene.

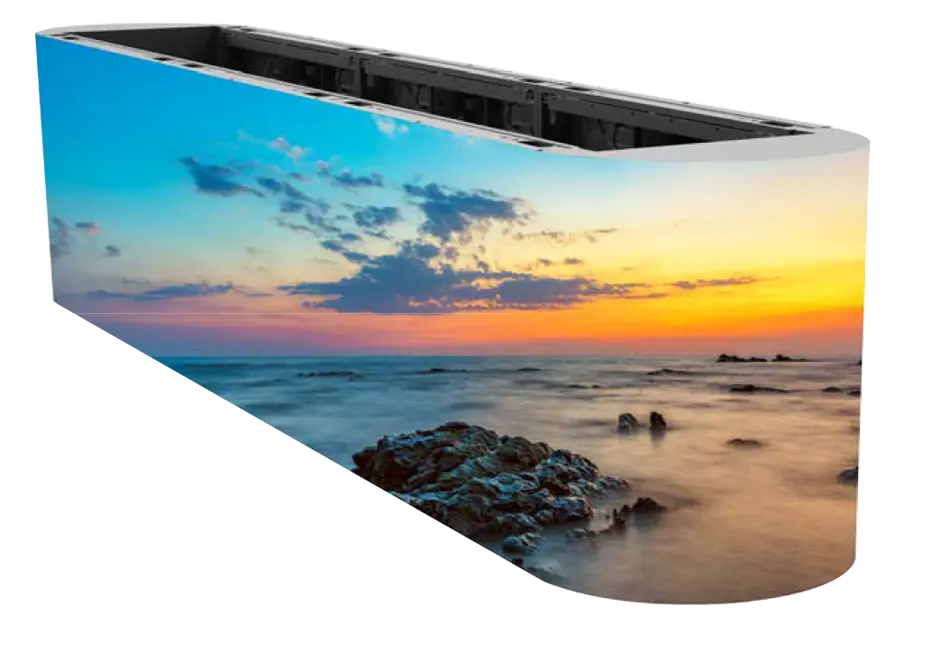

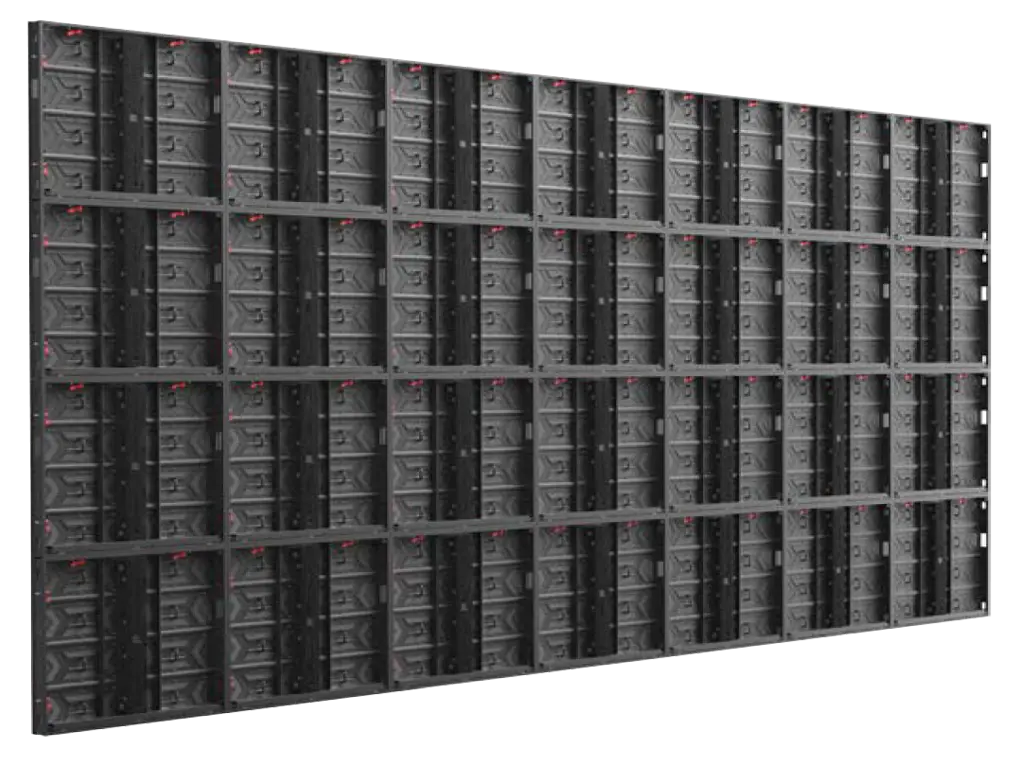

Customizable Any Splicing Cabinet

Supporting curved design, easy to assemble corner shapes.

PARAMETER TABLE

  Model No. P2.9 P3.9 P4.8 P6.2 P7.8 P10
  Pixel Pitch(mm) 2.97mm 3.91mm 4.81mm 6.25mm 7.81mm 10.42mm
  LED Configuration SMD1415 SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
  Module Size(mm) 500x250mm 500x250mm 500x250mm 500x250mm 500x250mm 500x250mm
  Module resolution(pixels) 168x84 128x64 104x52 80x40 64x32 48x24
  Brightness(cd/m²) ≥4500 ≥4500 ≥4500 ≥6000 ≥6000 ≥6000
  Refresh rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
  Gray rate 14bit 14bit 14bit 14bit 14bit 14bit
  Viewing angle(H/V) 140/140 140/140 140/140 140/140 140/140 140/140
  Scanning method 1/21s 1/16s 1/13s 1/5s 1/4s 1/2s
  Module weight
Alu module chassis 1400g Plastic module chassis
  Cabinet size（mm）
1000mm*1000mm*75mm
  Cabinet Weight
25kg
  IP Grade(front/bear)
IP65
  Max. Power Consumption(w)
Common cathode screen : Aver 550w/㎡ ; Regular screens: Aver 800w/㎡
  Avg. Power Consumption(w)
Common cathode screen : Aver 180w/㎡ ; Regular screens: Aver 320w/㎡

Contact Our LED Display Experts

Light up your holiday magic with our Christmas Tree LED Display!

Custom‑shaped into vivid tree silhouettes, this creative LED screen delivers vibrant, twinkling lighting effects and festive dynamic patterns. High‑brightness, stable performance brings eye‑catching visual charm for shopping malls, plazas, resorts and commercial centers.

Christmas Tree LED Display

Light up your holiday magic with our Christmas Tree LED Display!

Custom‑shaped into vivid tree silhouettes, this creative LED screen delivers vibrant, twinkling lighting effects and festive dynamic patterns. High‑brightness, stable performance brings eye‑catching visual charm for shopping malls, plazas, resorts and commercial centers.
