LED Roll-Up Display G-Roll

For Stage Rental and Commercial Display

What is LED ROLL-UP Screens?

LED rolling screen is a creative display product launched by the company, with a lighter and thinner structural design and a more exquisite appearance,a revolutionary LED display that combines advanced engineering with a sleek, space-saving design to deliver stunning visual performances in any environment. Crafted from ultra-lightweight yet robust GOB material with a pixel pitch as fine as 0.7mm, the LED roll-up screen offers unparalleled picture quality, vibrant colors, and exceptional contrast.

Its motorized mechanism enables seamless concealment and effortless operation, whether ceiling or wall-mounted. Ideal for conference rooms, classrooms, exhibition halls, lounges, and auditoriums, the rolling led screen blends flexibility with high performance. Built with signature all-weather industrial reliability, it adapts to a wide range of creative applications, making it a groundbreaking solution for customers looking to add both artistic functionality and practical artistry to their display experience.

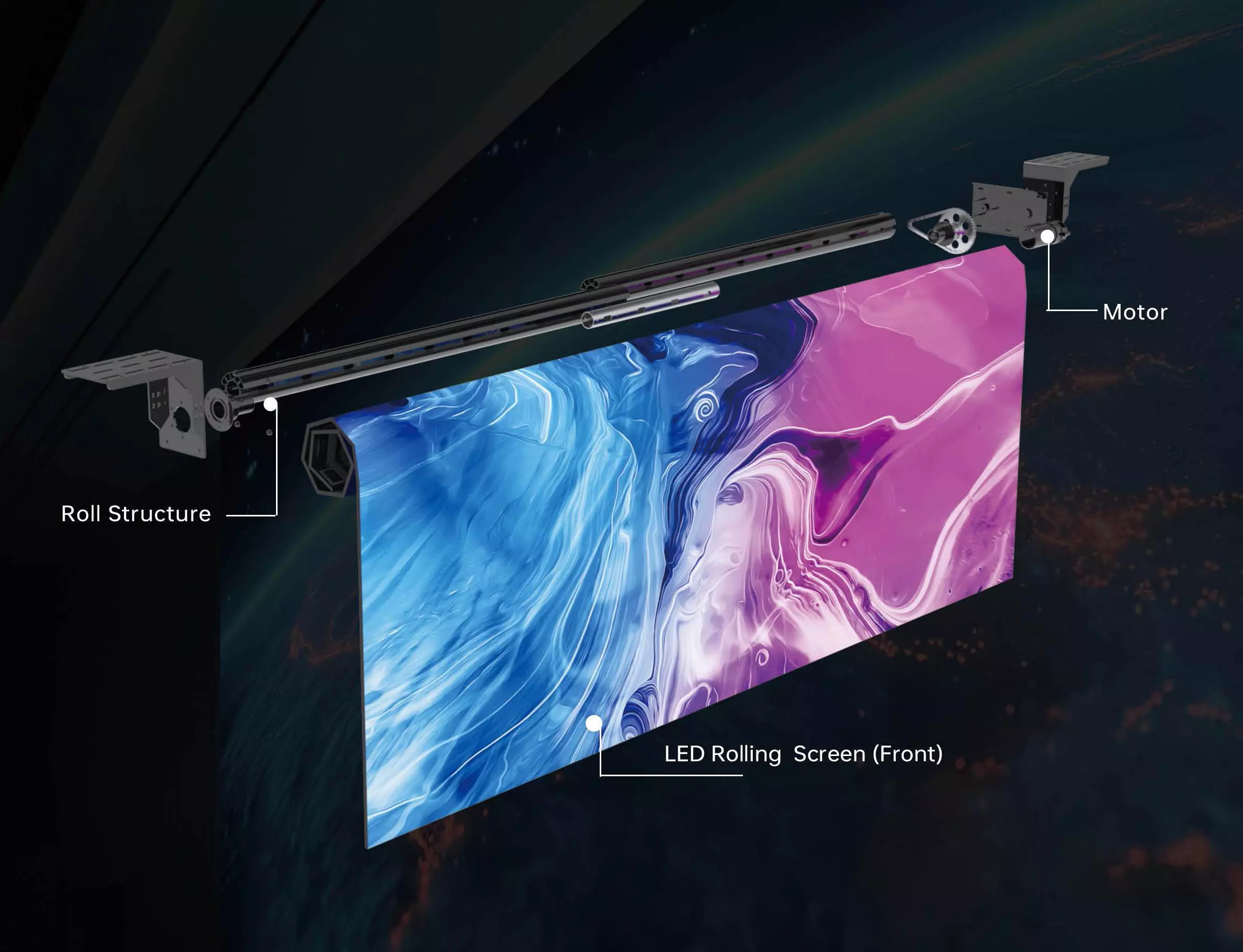

LED Roll-up Displays

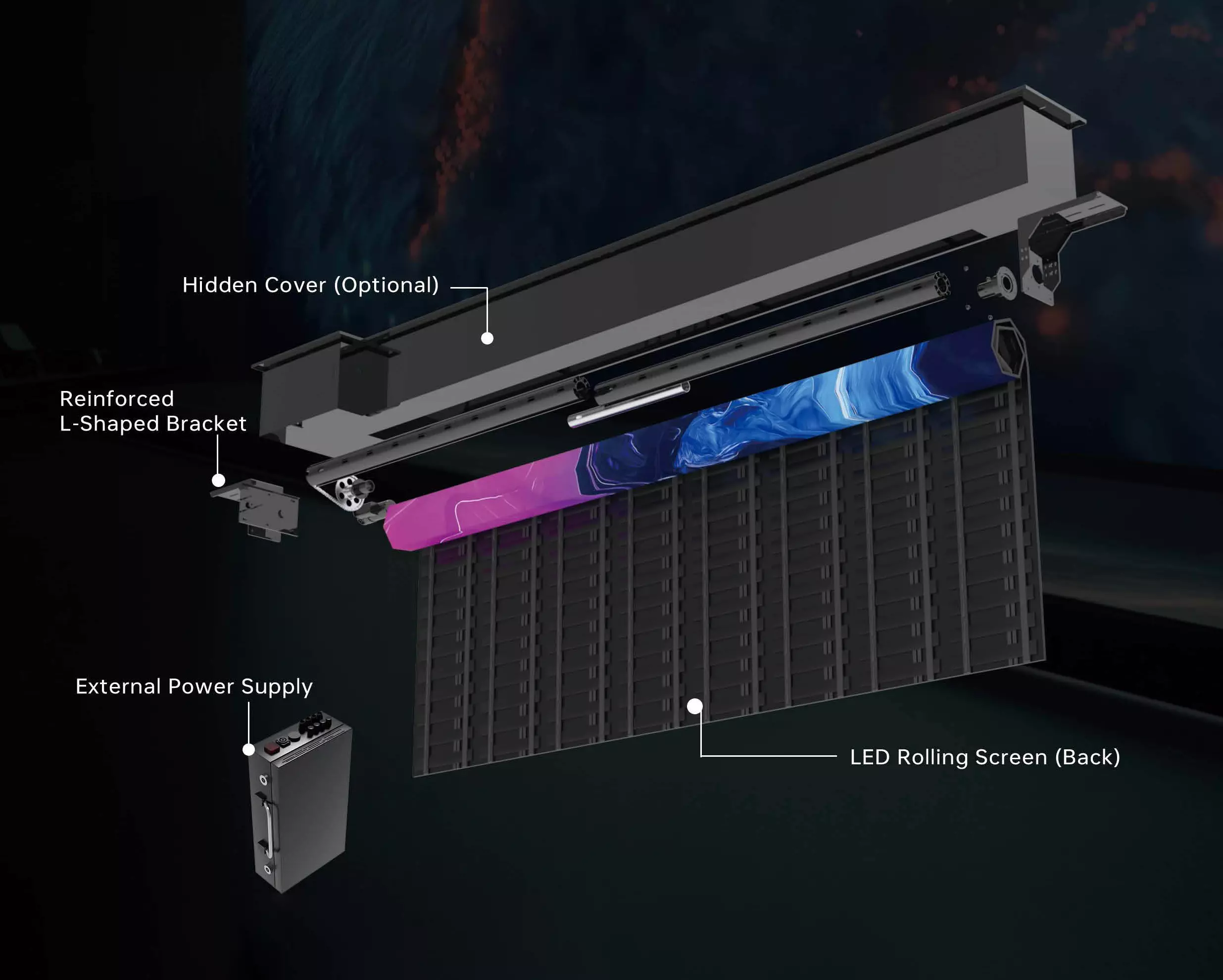

LED Rollable Displays

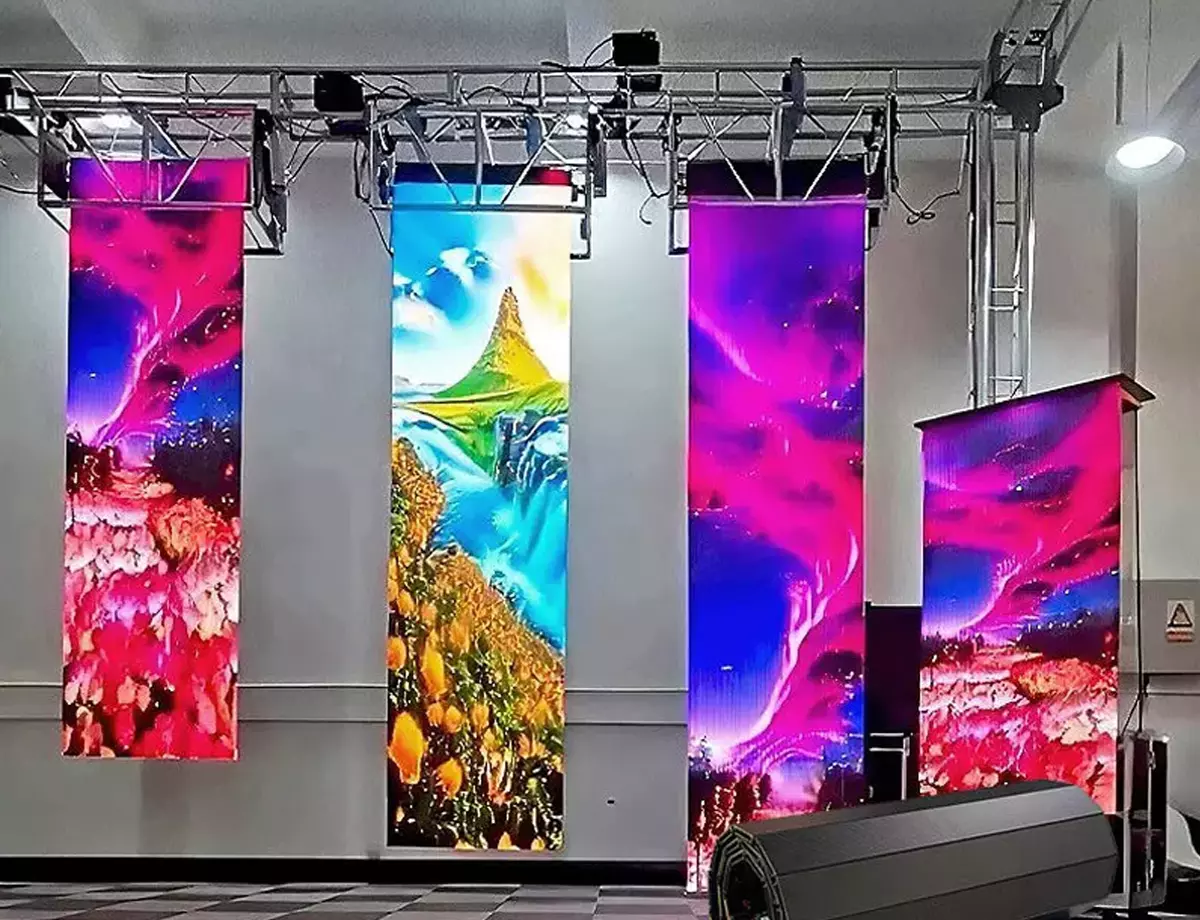

Rolling LED Displays
Rolling Up Interactive LED Screens

Innovative LED Display Products

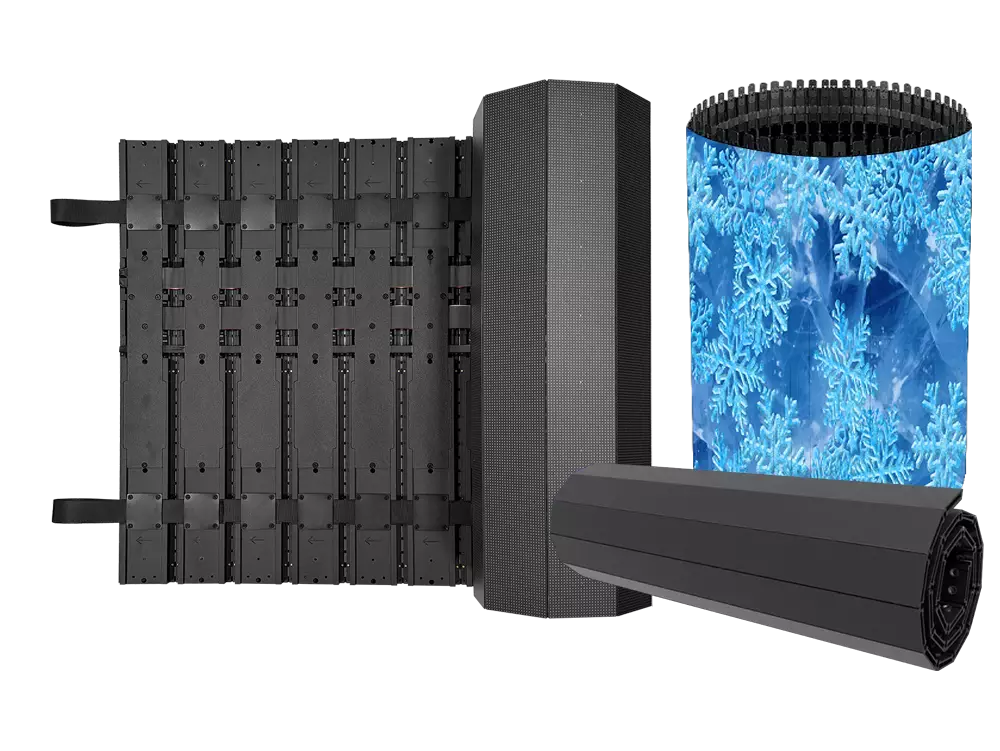

Our rolling LED displays feature flexible rollable design, which can be easily rolled up, folded and carried. Ultra-thin and lightweight structure simplifies transportation and storage, saving plenty of space and logistics cost.

With excellent flexibility, it fits curved surfaces, narrow spaces and various irregular installation scenarios. Quick assembly and front maintenance bring great convenience for on-site setup and after-sales service. Boasting stable display performance, vivid colors and good weather resistance, it is widely used for stage backgrounds, exhibitions, commercial promotions, event performances and temporary advertising projects.

Get a Free Quote
Rolling Up Interactive LED Screens

GOB LED Technology

Surface safty with IK10 anti-collision grade and IP65 waterproof grade, also with non-slip mat and anti-reflection. And high visual performance (with high contrast LED for uniform visual performance in black) are considered.

Rolling LED Screens

Ultra-light and Ultra-thin

15 KG/Sqm weight and 10 mm thickness make easy to install and carry, wich can simplify the design of supporting structure to design better artistic effect.

Rollable Interactive LED Screens

Aluminum module case

Aluminum case adopts strething process, which make sure the accurate size and have the best heat dissipation from the LED.

LED Roll-Up Display Screen
PARAMETER TABLE

  Model No. P0.78 P0.97 P1.25 P1.56 P1.95 P2.6 P3.91
  Pixel Pitch(mm) 0.78mm 0.976mm 1.25mm 1.56mm 1.95mm 2.6mm 3.91mm
  LED Configuration SMD0606 SMD0606 SMD1010 SMD1010 SMD1010/1415 SMD1415/1515 SMD2121
  Pixel density(dots/m²) 1638,400 1048,576 640,000 409,600 262,144 147,456 65,536
  Module resolution(pixels) 640x80 512x64 400x50 320x40 256x32 192x24 128x16
  Brightness(cd/m²) 400 400 400 600 600 600 600
  Max power consumption(w) 570 540 450 510 480 480 480
  Avg power consumption(w) 190 180 150 170 160 160 160
  Scanning method 1/80s 1/64s 1/50s 1/40s 1/32s 1/24s 1/16s
  Moudle size（mm）
500x62.5x17nn(±0.5mm)
  Maximum load bearing
1000kg/m²
  Refresh rate
3840-7680Hz(optional)
  Protection level
IP54/IP21
  Installation method
Floor/Rolling/(optional）
Swipe left or right to view more content
